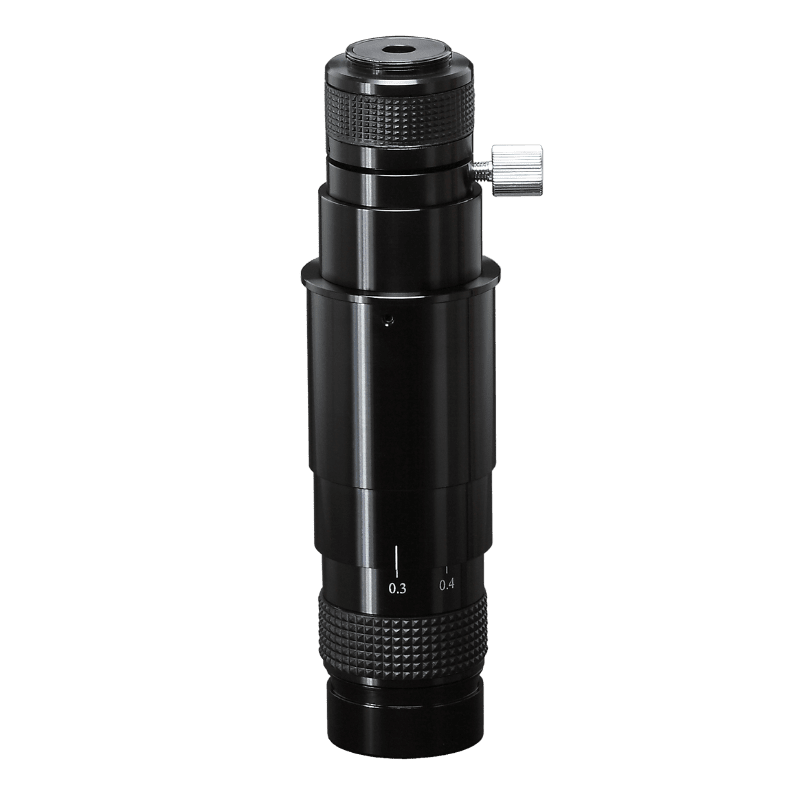

MZD0318 low mag, big depth zoom lens

MZD0318 low mag, big depth zoom lens

Category Video Microscope Tags big depth of view, digital microscope, high resolution, low mag., machine vision lens, parfocal, zoom lens

Main body zoom range: 0.3X~1.8X
Illuminators, stand, and CCD adapters are optional.
Long working distance(195mm), low mag., and big depth of view (D40) offers an excellent solution for production lines of PCB, LCD, and optical fiber.

Additional information

Optical Mag.	0.3X~1.8X
Zoom Ratio	6:1
Mounting Size	φ45mm
Working Distance	115mm, 145mm, 195mm, 35mm
Mount	C mount

Produt Details

Low mag 0.15X offers a big depth of view (at least 3mm) ;
With a zoom ratio of 6:1, a zoom range of 0.3X to 1.8X and a variable optical magnification range of 0.15X-3.6X offers versatility;
1*1.3mm-24*32mm field of view to quickly capture details in a wide range;
The working distance can be changed from 35 to195mm;
Especially suitable for production lines of PCB, LCD, and optical fiber

Optical Specifications

Dimension Drawing

Optional accessories to combine a video system
