Weight | 1800 g |
---|---|
Dimensions | 370 × 330 × 385 mm |
Optical Mag. | 7X~45X |
Zoom Ratio | 6.4:1 |
standard eyepieces | SWH10X/23 |
Eyetube Inclination degree | 45 degree |
Working distance | 110mm |
Interpupillary Distance | 52mm~76mm |
Diopter Range | +-6 degree |
Stand | SD1 |
Illuminator | ML60 LED |
CCD adaptor | C1.0-S (used for trinocular) |
color | Grey, black |

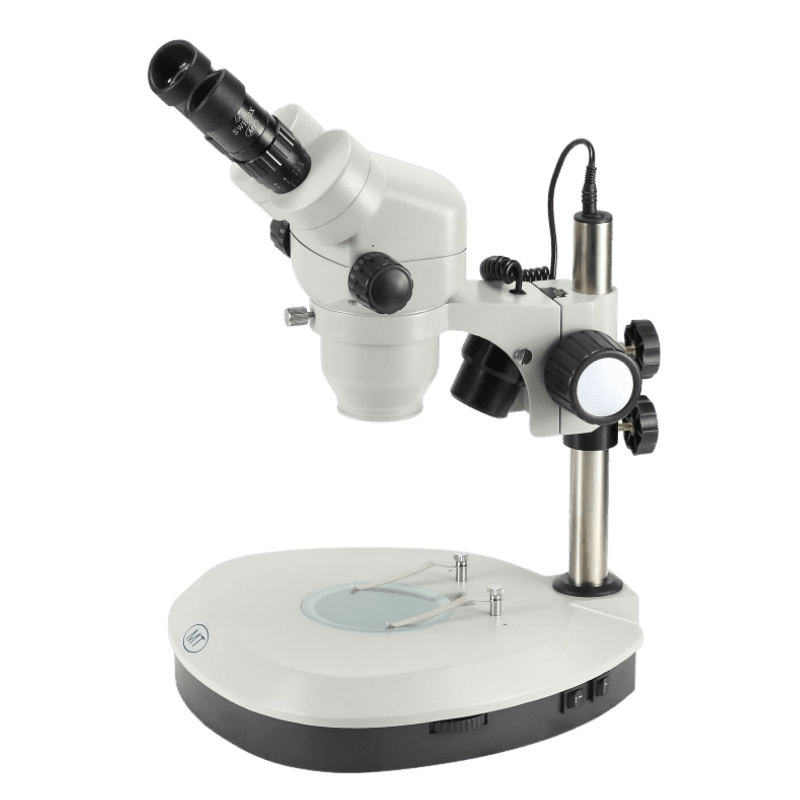

MZS0745+SD1:

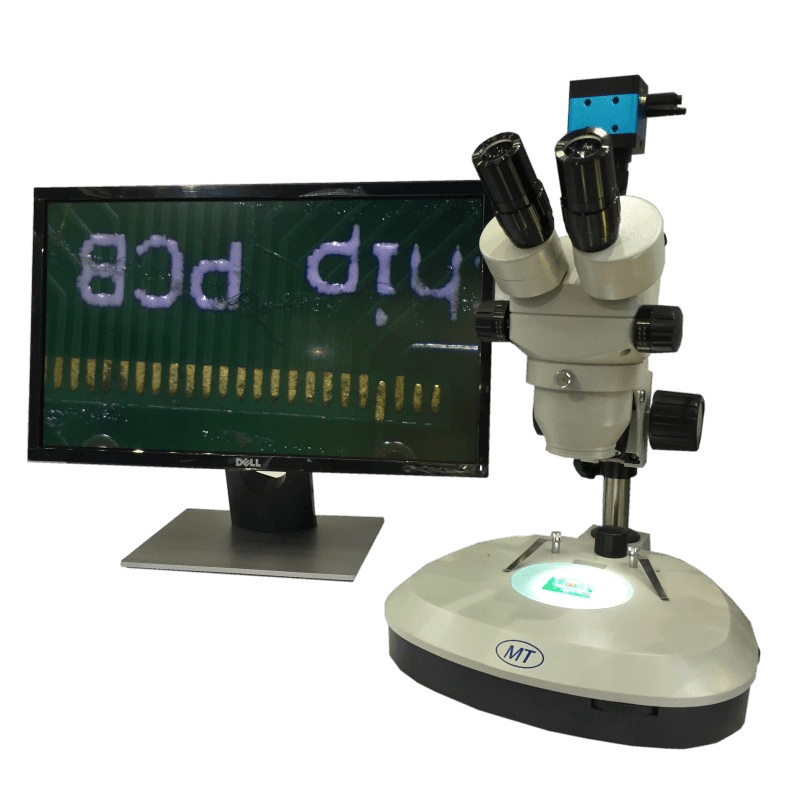

MZS0745T+SD1:
Eyepiece | Item | Main body | with different auxiliary objective | ||||
0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
10X | Total Mag. | 7X~45X | 2.59X~16.65X | 3.5X~22.5X | 4.9X~31.5X | 10.5X~67.5X | 14X~90X |
FOV(mm) | Φ32.8~Φ5.1 | Φ88.8~Φ13.8 | Φ65.7~Φ10.2 | Φ46.9~Φ7.3 | Φ21.9~Φ3.4 | Φ16.4~Φ2.6 | |
15X | Total Mag. | 10.5X~67.5X | 3.89X~25X | 5.3X~33.8X | 7.4X~47.2X | 15.8X~101.3X | 21X~135X |
FOV(mm) | Φ24.3~Φ3.8 | Φ65.6~Φ10.2 | Φ48.6~Φ7.6 | Φ34.7~Φ5.4 | Φ16.2~Φ2.5 | Φ12.1~Φ1.9 | |
20X | Total Mag. | 14X~90X | 5.18X~33.3X | 7X~45X | 9.8X~63X | 21X~135X | 28X~180X |
FOV(mm) | Φ20~Φ3.1 | Φ54.1~Φ8.4 | Φ40~Φ6.2 | Φ28.6~Φ4.4 | Φ13.3~Φ2.1 | Φ10~Φ1.6 | |
30X | Total Mag. | 21X~135X | 7.77X~50X | 10.5X~67.5X | 14.7X~94.5X | 31.5X~202.5X | 42X~270X |
FOV(mm) | Φ12.9~Φ2 | Φ34.7~Φ5.4 | Φ25.7~Φ4 | Φ18.4~Φ2.9 | Φ8.6~Φ1.6 | Φ6.4~Φ1 | |
WD(mm) | 110 | 275 | 195 | 145 | 50 | 35 |
![]() | Stands: SD1~SD18 | ![]() | Digital camera adapter: DT01 | |

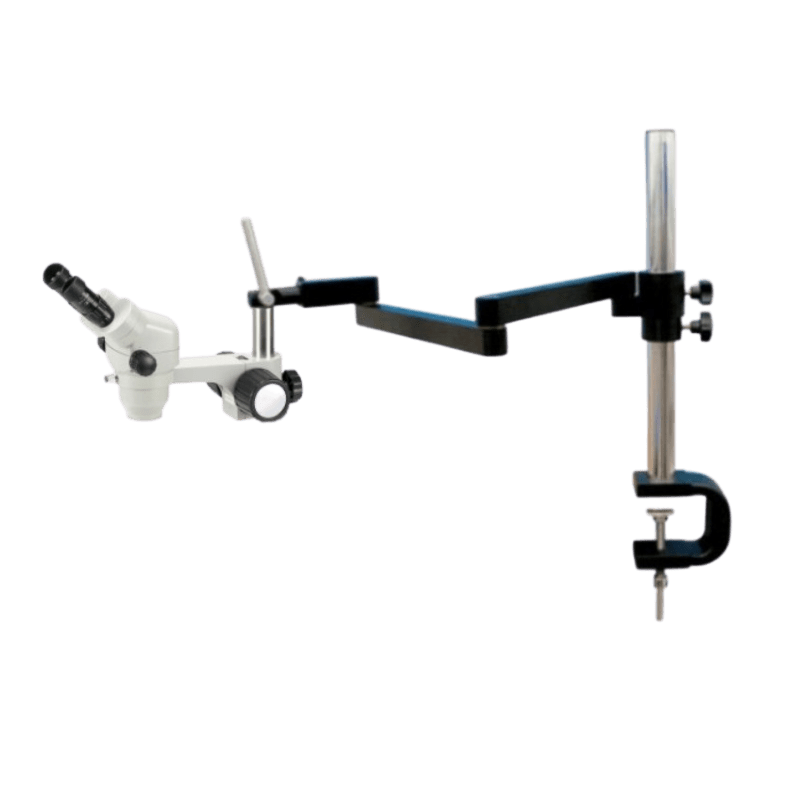

![]() | Universal stands: U1, U2, U3, U4, U1c, U2c, U3c | ![]() | Digital camera adapter: PT02 | |
![]() | Eyepieces: SWH10X, SWF15X, SWF20X,SWF30X | ![]() | 1X CCD adapter with micrometer: CDM1.0; Note: It should be used with CCD adapter together. | |
![]() | Eyepieces with reticle: SWH10X-CM0.1XY, SWF15X-CM0.05XY, SWF20X-CM0.05XY | ![]() | Auxiliary illuminators: MLR60, ML01 | |
![]() | Auxiliary objectives: W0.37, W0.5, W0.7, W1.5, W2.0 | ![]() | CMOS Cameras: available | |
![]() | CCD adapters: C0.3-S、C0.5-S、C1.0-S | ![]() | Mechanical stages: S7665,S10086; Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs especially to be increased the screw holes. |
