| Optical Mag. | 8X~70X |
|---|---|
| Zoom Ratio | 8.8:1 |
| Eyepieces | 10X/23mm |
| View Path | Binocular, Trinocular |
| Trinocular Ratio | 100:0 |
| Field of View | φ23mm |
| Viewing Angle | 35° |
| Working Distance | 108mm |
| Focus Holder | SF1 coarse focus |
| Stand | SD1 |

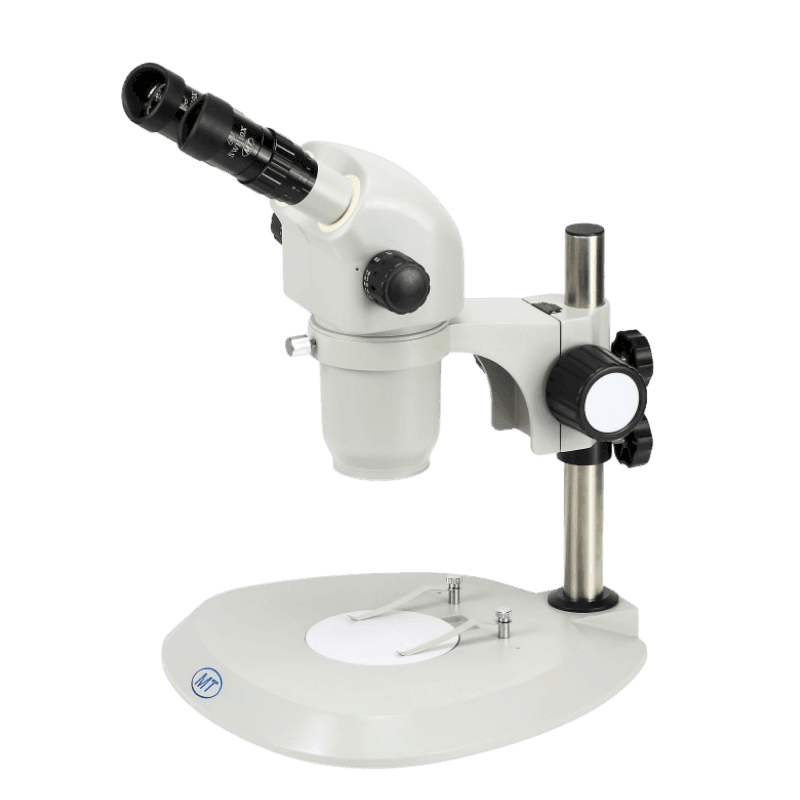

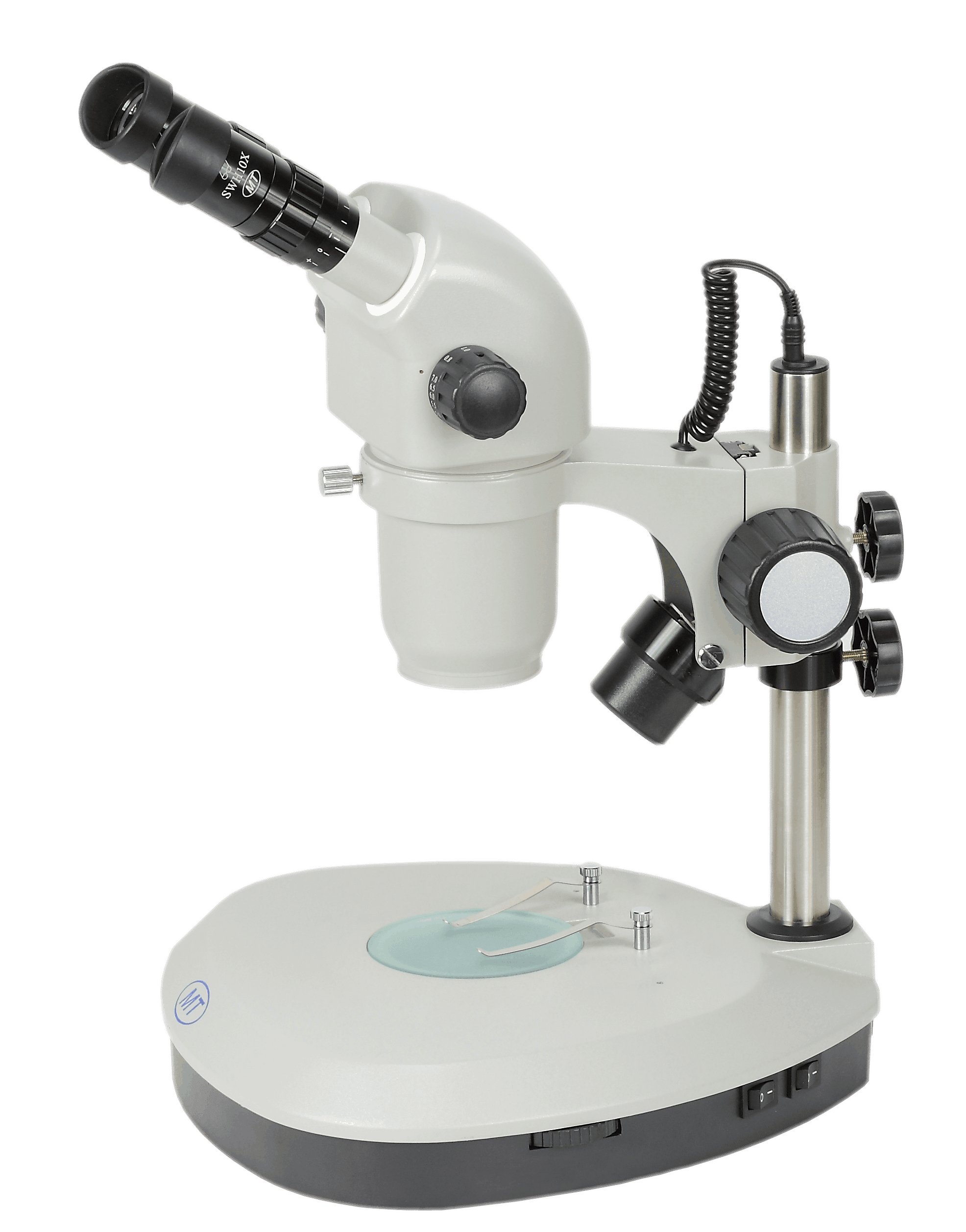

MZS0870+SD1:

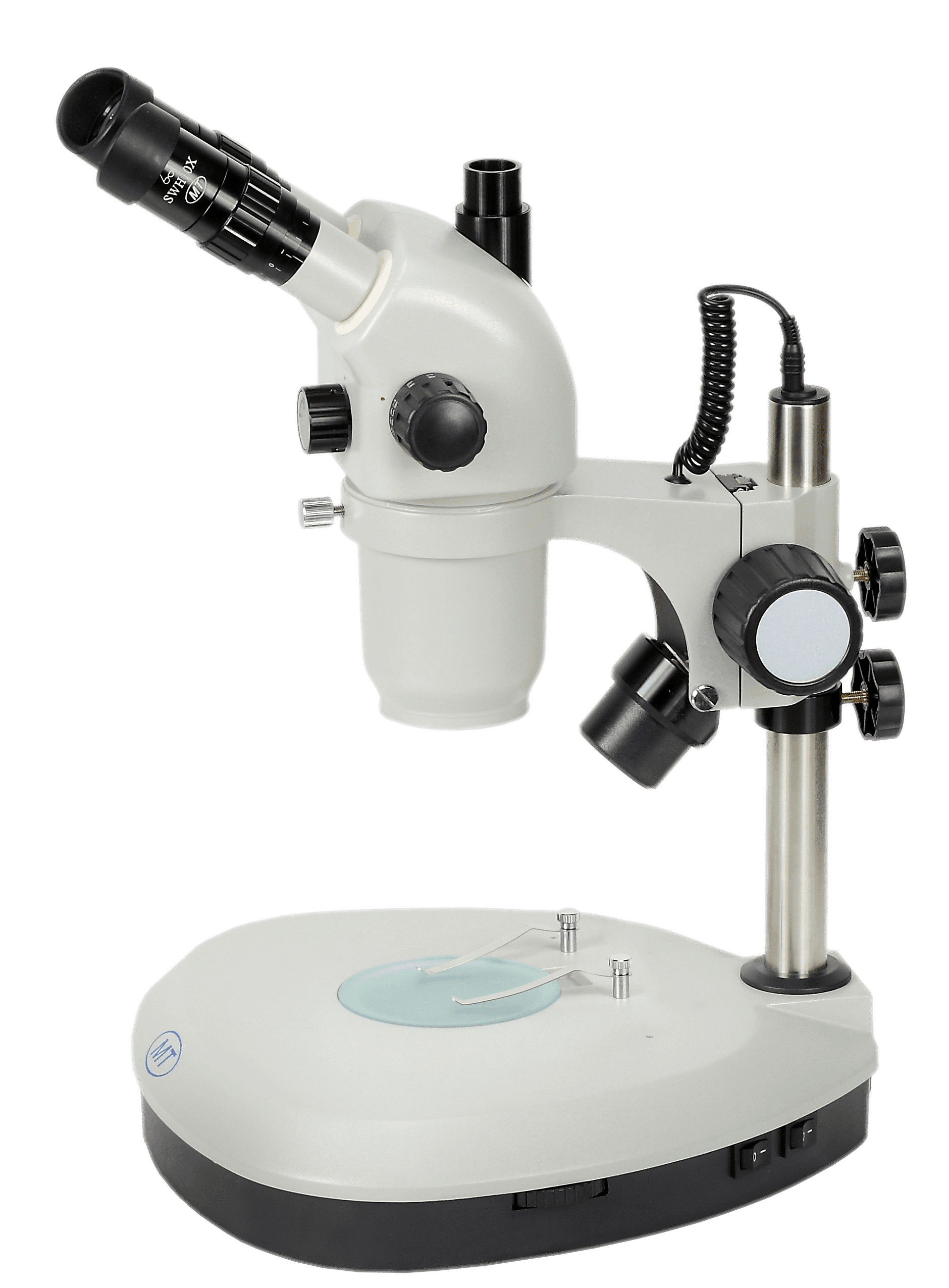

MZS87T+SD1:
| Eyepiece | Item | Main body | Specification of different auxiliary objective | ||||
| 0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
| 10X | Total Mag. | 8X~70X | 2.96X~25.9X | 4X~35X | 5.6X~49X | 12X~105X | 16X~140X |
| FOV(mm) | Φ28.75~Φ3.3 | Φ74.3~Φ8.5 | Φ57.5~Φ6.6 | Φ41.1~Φ4.7 | Φ19.2~Φ2.2 | Φ14.4~Φ1.6 | |
| 15X | Total Mag. | 12X~105X | 4.44X~38.9X | 6X~52.5X | 8.4X~73.5X | 18X~157.5X | 24X~210X |
| FOV(mm) | Φ21.25~Φ2.4 | Φ57.4~Φ6.6 | Φ42.5~Φ4.9 | Φ30.4~Φ3.5 | Φ14.2~Φ1.6 | Φ10.6~Φ1.2 | |
| 20X | Total Mag. | 16X~140X | 5.92X~51.8X | 8X~70X | 11.2X~98X | 24X~210X | 32X~280X |
| FOV(mm) | Φ17.5~Φ2 | Φ47.3~Φ5.4 | Φ35~Φ4 | Φ25~Φ2.9 | Φ11.7~Φ1.3 | Φ8.75~Φ1 | |
| 30X | Total Mag. | 24X~210X | 8.88X~77.7X | 12X~105X | 16.8X~147X | 36X~315X | 48X~420X |
| FOV(mm) | Φ11.25~Φ1.3 | Φ30.4~Φ3.5 | Φ22.5~Φ2.6 | Φ16.1~Φ1.8 | Φ7.5~Φ0.9 | Φ5.625~Φ0.6 | |
| WD(mm) | 108 | 275 | 195 | 145 | 50 | 35 | |
| NOTES: 1. Please use lengthened round post when using 0.37X objective, track stands cannot be used. 2. When 0.5X or lower magnification objective is applied, track stands cannot be used. | |||||||
 |
Stands: SD1~SD18 |  |
Digital camera adapter: DT01 | |
 |
Universal stands: U1, U2, U3, U4, U1c, U2c, U3c |  |
Digital camera adapter: PT02 | |
 | Eyepieces: SWH10X, SWF15X, SWF20X,SWF30X |  |
1X CCD adapter with micrometer: CDM1.0; Note: It should be used with CCD adapter together. | |
 |
Eyepieces with reticle: SWH10X-CM0.1XY, SWF15X-CM0.05XY, SWF20X-CM0.05XY |  |
Auxiliary illuminators: MLR60, ML01 | |
 |
Auxiliary objectives: W0.37, W0.5, W0.7, W1.5, W2.0 |  |
CMOS Cameras: available | |
 | CCD adapters: C0.3-S、C0.5-S、C1.0-S |  | Mechanical stages: S7665,S10086; Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs especially to be increased the screw holes. |
