Key Features:
| Parameter | Specification |
|---|---|
| Optical Zoom Range | 0.38X ~ 2.5X |
| Working Distance | 80mm |
| Field of View | 18.5 × 10.5mm (low zoom) ~ 3 × 1.7mm (high zoom) |
| Optical Resolution | 14.3μm (low zoom) ~ 4.8μm (high zoom) |
| Depth of Field | 4.5mm (low zoom) ~ 0.22mm (high zoom) |
| Voltage Input | DC 12V, 2A |
| Video Output | HDMI digital signal output |
| Camera Specifications | Sensor Size: 1/2″; Image Resolution: 1920 × 1080; Frame Rate: 60fps |
| Lens Mount Diameter | Φ76mm (compatible with stand holder size) |
Precision Imaging:
User-Friendly Design:
Versatile Video Output:
Compatibility:
| No. | Component | Quantity | Remarks |
|---|---|---|---|
| 1 | Main Unit | ||
| MZVF0425 Zoom Microscope Body | 1 | ||
| 12V 2A Power Adapter | 1 | ||
| USB Mouse | 1 | Optional | |
| 2 | HDMI Display | Optional | |
| HDMI-Compatible Display | 1 | ||
| Display Power Adapter | 1 | ||
| HDMI Signal Cable | 1 | ||
| 3 | Base Assembly | Optional | |
| SD10 Round Post Stand (No Light) | 1 | Other stereo microscope bases optional |
Remark: you can match the display screen and U-disk by yourself. If you need us to offer them, please let us know before you place order.
This versatile microscope system is ideal for a wide range of industries and applications, particularly where precision inspection and measurement are critical:
| Feature | Customer Benefit |
|---|---|
| Continuous Zoom (0.38X–2.5X) | Quickly switch magnifications to inspect fine details and larger views seamlessly. |
| High-Resolution HDMI Output | Stream live 1080p images at 60fps for smooth, clear visual analysis. |
| Integrated Measurement Tools | Eliminate recalibration, saving time and increasing accuracy during measurements. |
| LED Illumination | Adjustable ring light ensures proper lighting for any surface or material. |
| No PC Required | Operate entirely with a mouse and on-screen menu, simplifying setup and usage. |
| Compact All-in-One Design | Combines optics, lighting, and measurement into a single, space-saving solution. |
| USB Image Storage | Conveniently save and share inspection results without extra equipment. |

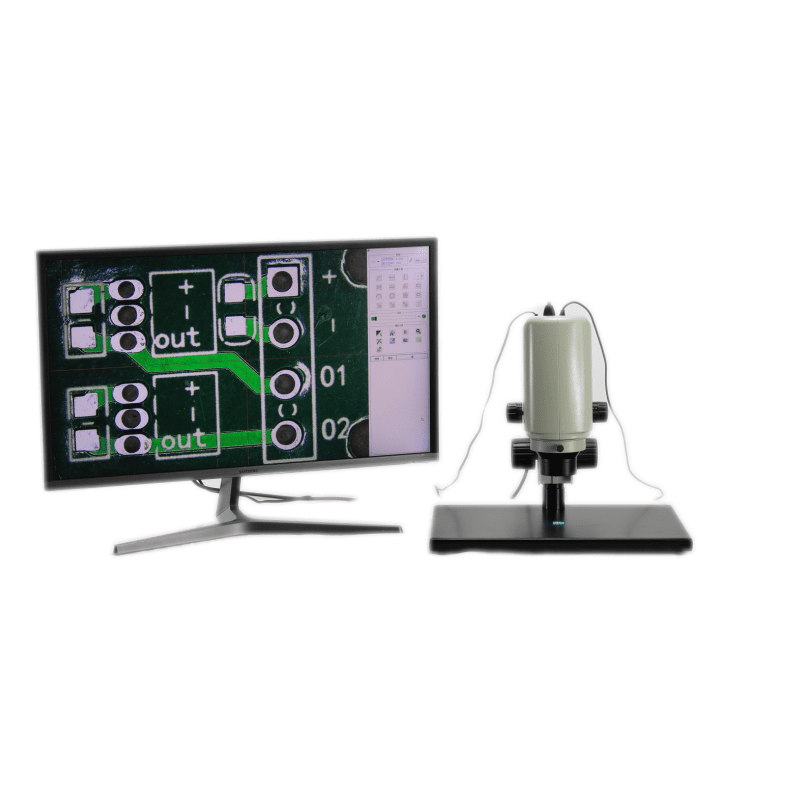

The MZVF0425 offers unparalleled ease of use and performance in a compact, all-in-one design. From electronics manufacturing to advanced scientific research, this versatile microscope system is engineered to improve efficiency, ensure precision, and deliver reliable results.
Contact us today to learn more or request a personalized consultation. Let’s make precision inspection simpler and smarter for your business.
