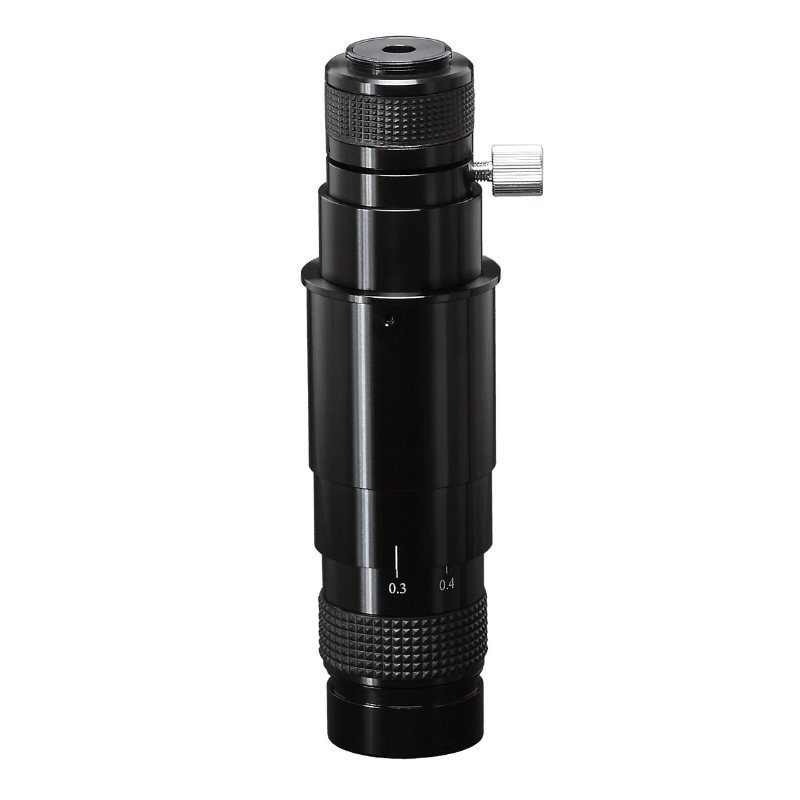

| Optical Mag. | 0.3X~1.8X |
|---|---|
| Zoom Ratio | 6:1 |
| Mounting Size | φ45mm |
| Working Distance | 115mm, 145mm, 195mm, 35mm |
| Mount | C mount |
| Mag. | NA | DOF | Resolution | TV Distortion | Fixed Dim.：Φ45mm |
| 0.3X | 0.023 | 5.8mm | 14.6μm | 0.12% | Max compatible camera：1/2″ |
| 1.0X | 0.058 | 0.69mm | 5.8μm | 0.13% | CCD screw mount：1 inch 32 button |
| 1.8X | 0.071 | 0.31mm | 4.7μm | 0.01% |
| Auxiliary objectives | Item | MZD0318 |
| 1X Main body | Optical Mag. | 0.3X～1.8X |
| FOV(mm) | 12X16～2X2.7 | |
| WD(mm) | 115 | |
| 0.5X | Optical Mag. | 0.15X～0.9X |
| FOV(mm) | 24X32～4X5.3 | |
| WD(mm) | 195 | |
| 0.7X | Optical Mag. | 0.21X～1.26X |
| FOV(mm) | 17.1X22.9～2.9X3.8 | |
| WD(mm) | 145 | |
| 2X | Optical Mag. | 0.6X～3.6X |
| FOV(mm) | 6X8～1X1.3 | |
| WD(mm) | 35 | |
| Zoom body magnification range | 0.3X～1.8X | |
|
| Auxiliary illuminators | MLC1000，MLR25 |
|
| C&CS mount CCD adapters | 0.5X, 1.0X(Standard outfits) |
|
| Objectives | 0.5X,0.7X, |
 | focus holders | SF5,SF10 |
|
| Stands | SD1-D ~ SD18-D |
