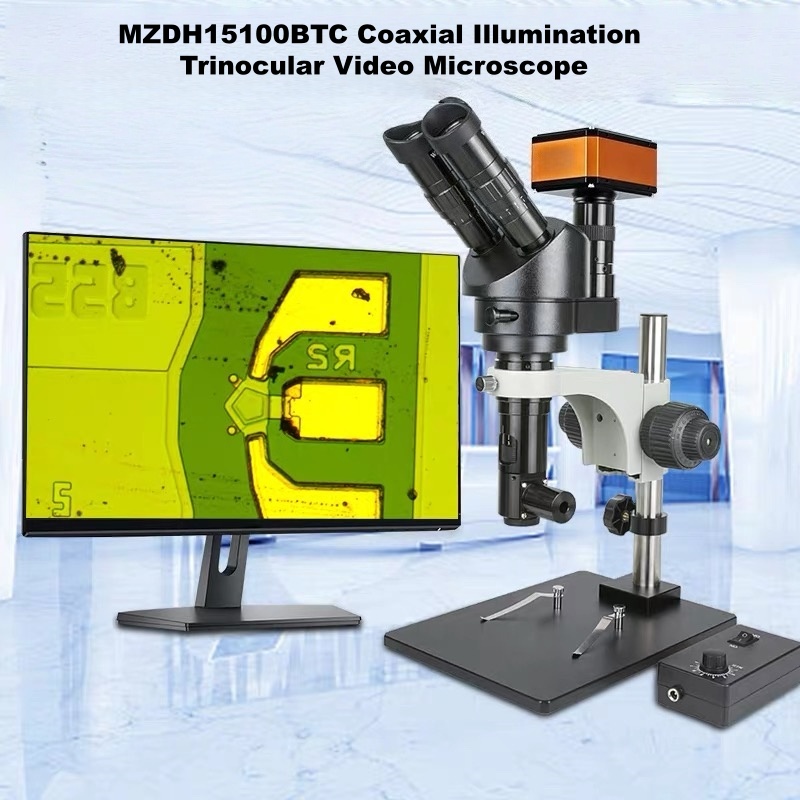

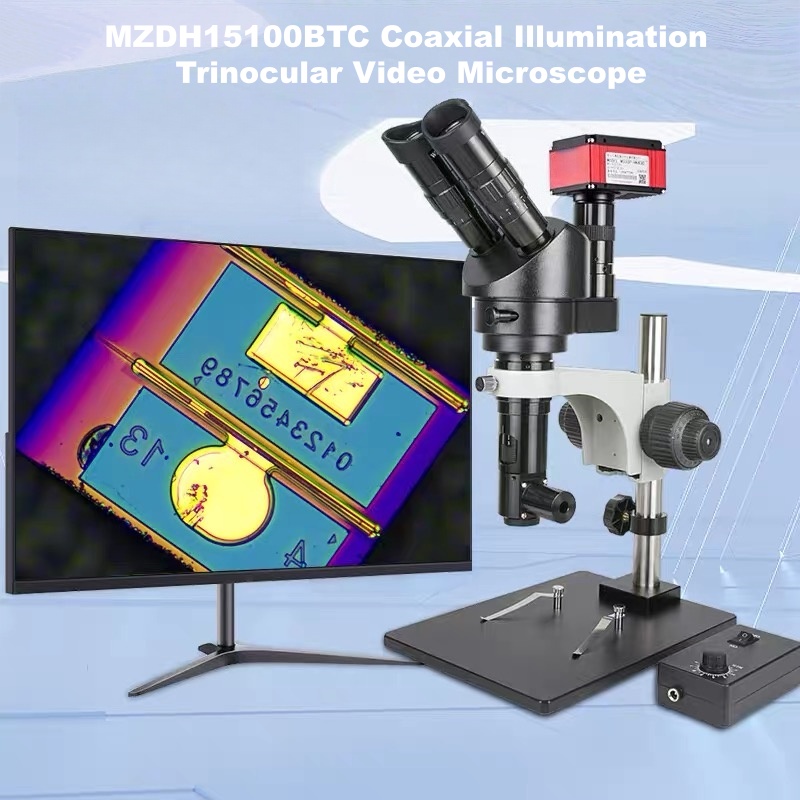

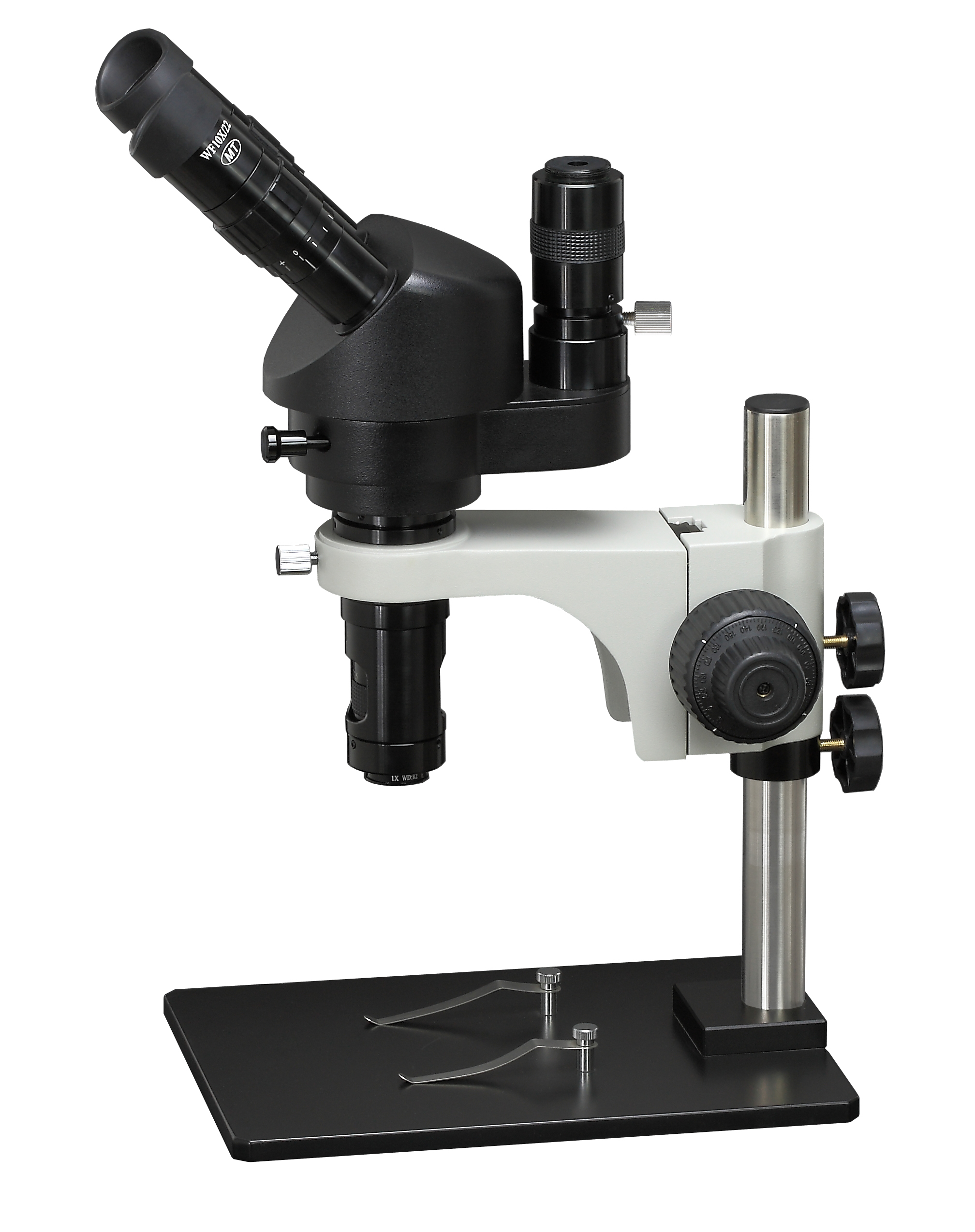

Struggling to inspect reflective surfaces on your probe station? > Our MTO MZDH15100 series is a professional Coaxial Illumination Zoom Microscope designed for high-end micro-inspection. It delivers an ultra-high resolution imaging system that supports simultaneous video display and visual observation. With a standard 15X–100X zoom (expandable to 1350X) and a patented 82mm long working distance, it is the ultimate solution for semiconductor and wafer analysis.
| Eyepieces | 10X/23mm |
|---|---|
| Viewing Angle | 45° |
| Field of View | φ23mm |
| Optical Mag. | 15X~100X(10X E) |
| Zoom Ratio | 6.7:1 |
| Working Distance | 82mm |
| Illuminator | LED coaxial illumination |
| Focus Holder | SF10 Fine-coarse Focus |
| Mounting Size | φ45mm |
Original Optical Design: High-magnification and high-resolution imaging specifically for microcosmic surfaces.
Simultaneous Observation: Supports video display, digital photography, and binocular visual observation at the same time.
Patented Coaxial Illumination: Built-in LED coaxial light source provides high-contrast imaging on reflective components.
Large Zoom Ratio: A 6.7:1 zoom ratio (1.5X to 10X) ensures seamless magnification transition.
Erect Image System: Binocular eyetubes provide an intuitive, non-reversed image for easier probe manipulation.
Ideal for probe stations for the features:
Except for probe station, it is also perfect for any other inspection on the objects which requires the conditions as above.
| Eyepieces observing Magnification | 15X~100X(10X eyepieces) observation total magnification:15X~100X. |
| Zoom range | 1.5X~10X |
| Working Distance | 82mm |
| Eyetubes | 45°/Binocular eyetubes indined45° |
| Illuminators | Long life,various color,high brightness LED coaxial illumination(optional polarizer) |
| Interpupillary distance adjustment range | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |
| Focus range | Hand wheel:50mm.height of round pole is 242mm. |
| Holder and main body matching dimension | D45mm |
| Eyepieces | Item | Main body | Auxiliary Objectives | ||||
| 0.5X | 0.75X | 1.5X | 2X | 4.5X | |||
| 10X/Φ22 | Total Mag. | 15X~100X | 7.5X~50X | 11.25X~75X | 22.5X~150X | 30X~200X | 67.5X~450X |
| FOV(mm) | Φ14.67~Φ2.2 | Φ29.33~Φ4.4 | Φ19.56~Φ2.93 | Φ9.78~Φ1.47 | Φ7.33~Φ1.1 | Φ3.25~Φ0.49 | |
| 15X/Φ17 | Total Mag. | 22.5X~150X | 11.25X~75X | 16.875X~112.5X | 33.75X~225X | 45X~300X | 101.3X~675X |
| FOV(mm) | Φ11.33~Φ1.7 | Φ22.67~Φ3.4 | Φ15.11~Φ2.27 | Φ7.56~Φ1.13 | Φ5.67~Φ0.85 | Φ2.52~Φ0.38 | |
| 20X/Φ14 | Total Mag. | 30X~200X | 15X~100X | 22.5X~150X | 45X~300X | 60X~400X | 135X~900X |
| FOV(mm) | Φ9.33~Φ1.4 | Φ18.67~Φ2.8 | Φ12.44~Φ1.87 | Φ6.22~Φ0.93 | Φ4.67~Φ0.7 | Φ2.07~Φ0.31 | |
| 30X/Φ9 | Total Mag. | 45X~300X | 22.5X~150X | 33.75X~400X | 67.5X~450X | 90X~600X | 203X~1350X |
| FOV(mm) | Φ6~Φ0.9 | Φ12~Φ1.8 | Φ8~Φ1.2 | Φ4~Φ0.6 | Φ3~Φ0.45 | Φ1.3~Φ0.20 | |
| WD(mm) | 82 | 175 | 117 | 54 | 35 | 16 | |
| Main body magnification range:1.5X~10X | |||||||
| Objective | Item | CCD adapter | |
| 0.5X | 1X | ||
| 1.0X | Total optical Mag. | 0.75X~5X | 1.5X~10X |
| FOV(mm) | 4.8X6.4~0.72X0.96 | 2.4X3.2~0.36X0.48 | |
| WD(mm) | 82 | ||
| 0.5X | Total optical Mag. | 0.375X~2.5X | 0.75X~5X |
| FOV(mm) | 9.6X12.8~1.44X1.92 | 4.8X6.4~0.72X0.96 | |
| WD(mm) | 175 | ||
| 0.75X | Total optical Mag. | 0.5625X~3.75X | 1.125X~7.5X |
| FOV(mm) | 6.4X8.53~0.96X1.28 | 3.2X4.27~0.48X0.64 | |
| WD(mm) | 117 | ||
| 1.5X | Total optical Mag. | 1.125X~7.5X | 2.25X~15X |
| FOV(mm) | 3.2X4.27~0.48X0.64 | 1.6X2.13~0.24X0.32 | |
| WD(mm) | 54 | ||
| 2X | Total optical Mag. | 1.5X~10X | 3X~20X |
| FOV(mm) | 2.4X3.2~0.36X0.48 | 1.2X1.6~0.18X0.24 | |
| WD(mm) | 35 | ||
| 5X | Total optical Mag. | 3.75X~25X | 7.5X~50X |
| FOV(mm) | 0.96X1.28~0.144X0.192 | 0.48X0.64~0.072X0.096 | |
| WD(mm) | 10.1 | ||
| Zoom body magnification range 1.5X～10X | |||
| Auxiliary illuminators | MLC1000，MLR25 |
| CCD adapters | 0.4X, 0.5X, 0.67X, 1.0X(Standard outfits),1.5X,2.0X |
| Objectives | 0.3X,0.4X,0.5X,0.6X,0.75X,0.9X, |
| Infinite farness metallographic lens | Nikon, Olympus, Mitutoyo |
| Stands | SD1-D ~ SD18-D |

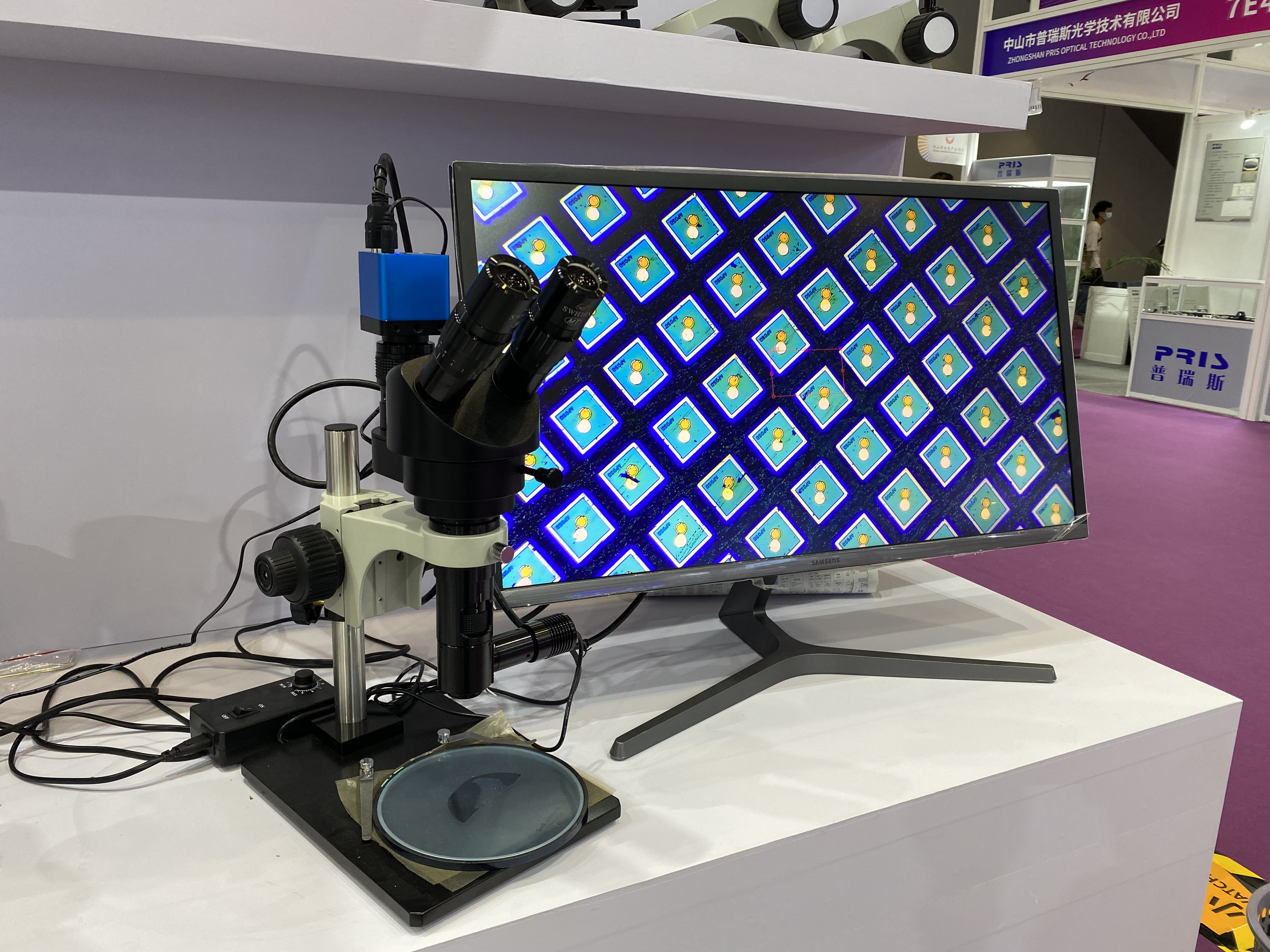

Probe Station Inspection: Ideal for wafer probing and electrical testing.
Semiconductor Manufacturing: Detailed inspection of micro-chips and circuits.
Material Science: Micro-surface analysis of reflective metals and glass.
Precision Measurement: High-accuracy QC for the micro-electronics industry.
A: When inspecting reflective surfaces like wafers or polished metals, standard ring lights often cause glare. A Coaxial Illumination Zoom Microscope like the MZDH15100 directs light through the optical path, providing high-contrast, shadow-free imaging that reveals tiny surface details invisible to regular lighting.
A: Yes. Our original trinocular design allows users to perform visual observation through the eyepieces while capturing high-definition video or photos via the CCD/CMOS camera interface without any light loss.
