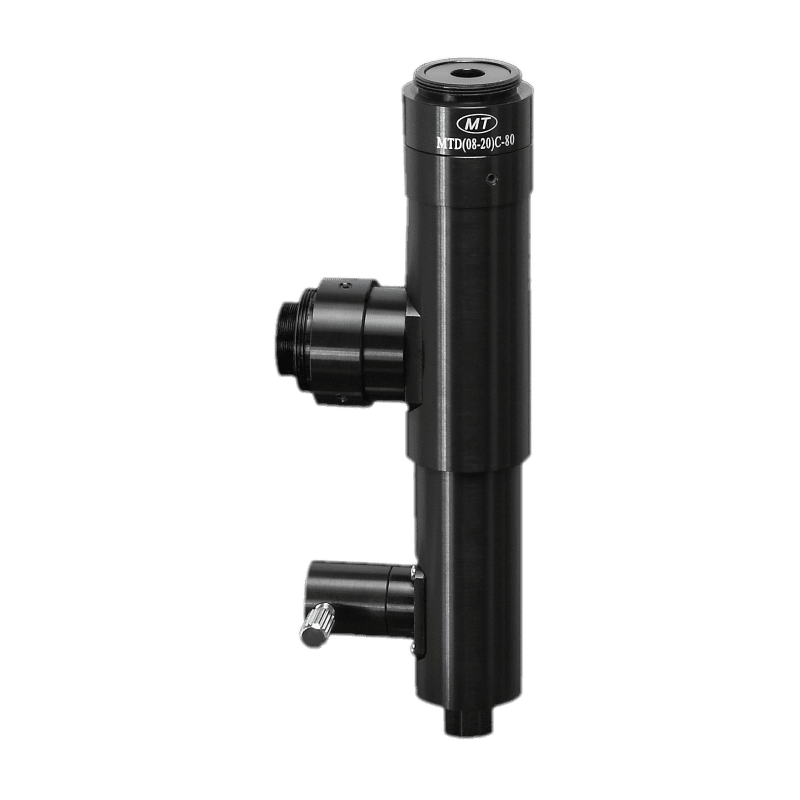

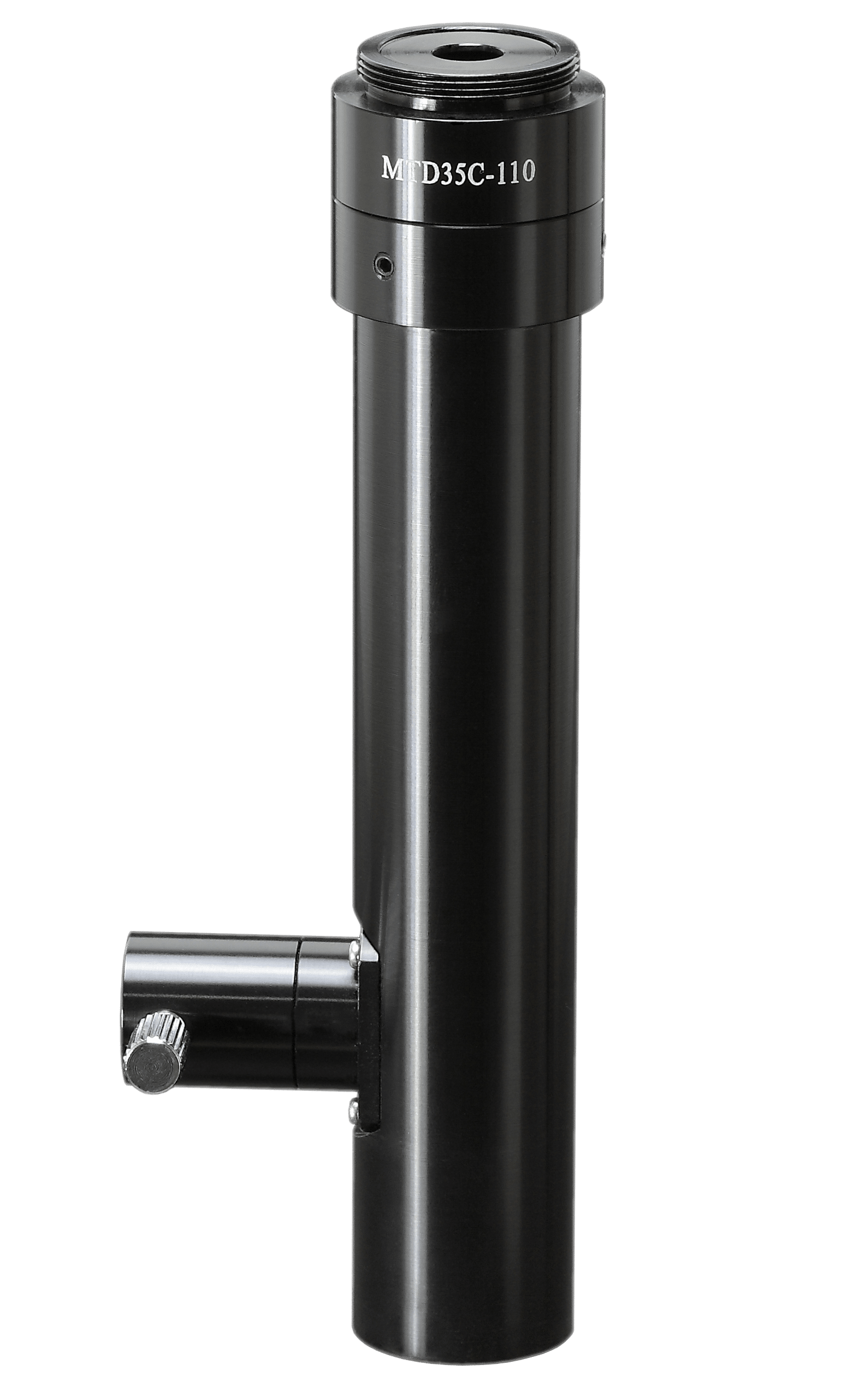

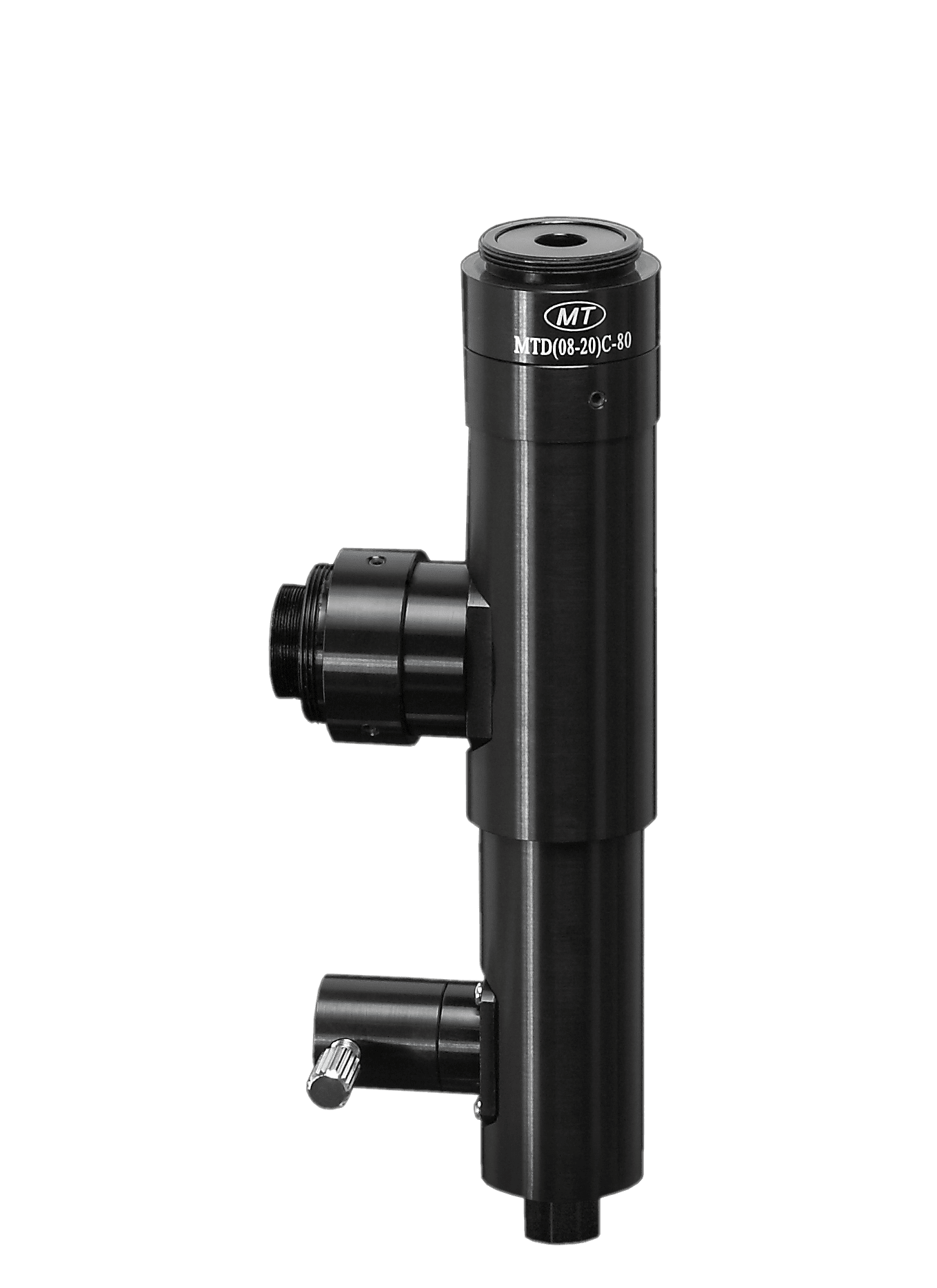

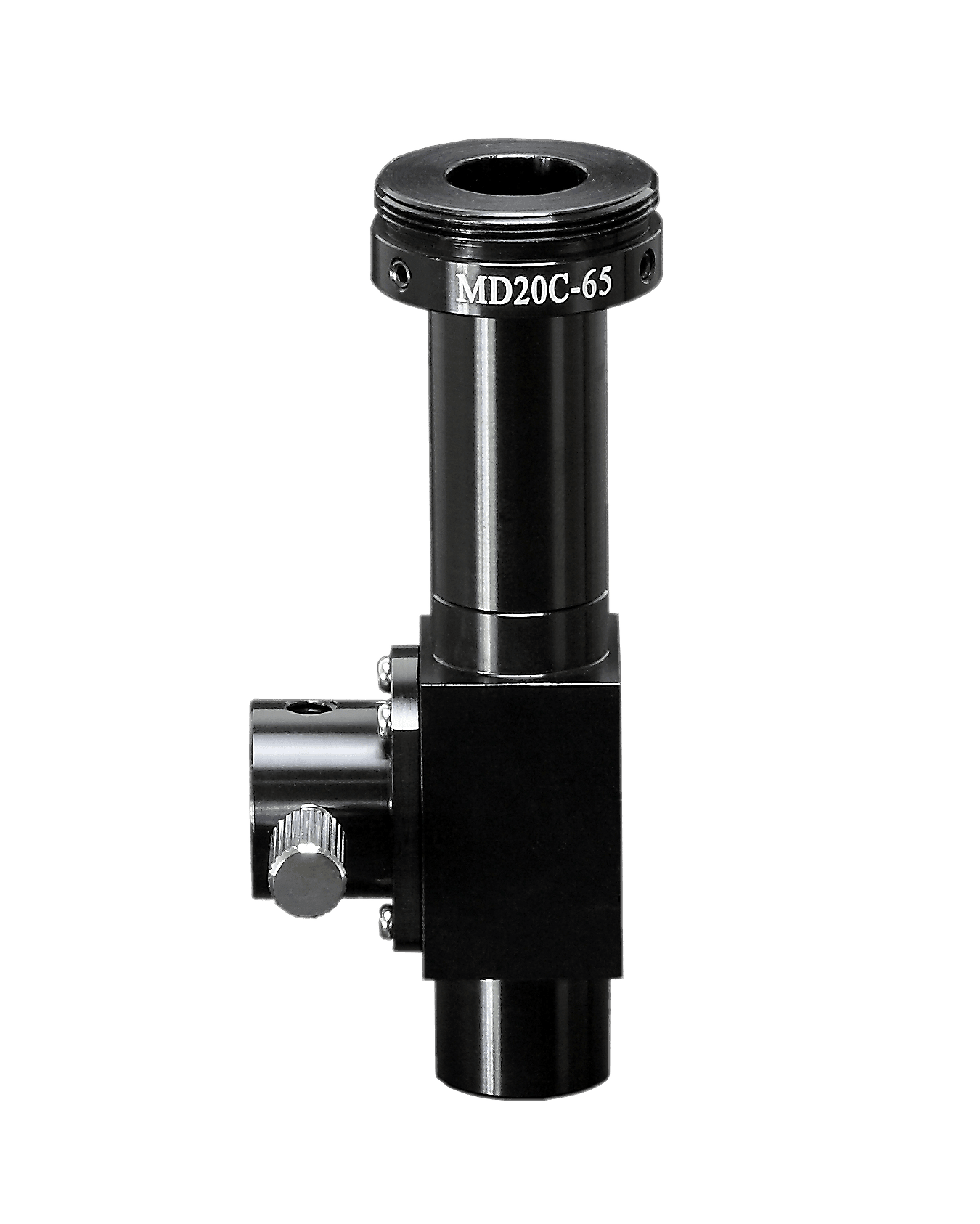

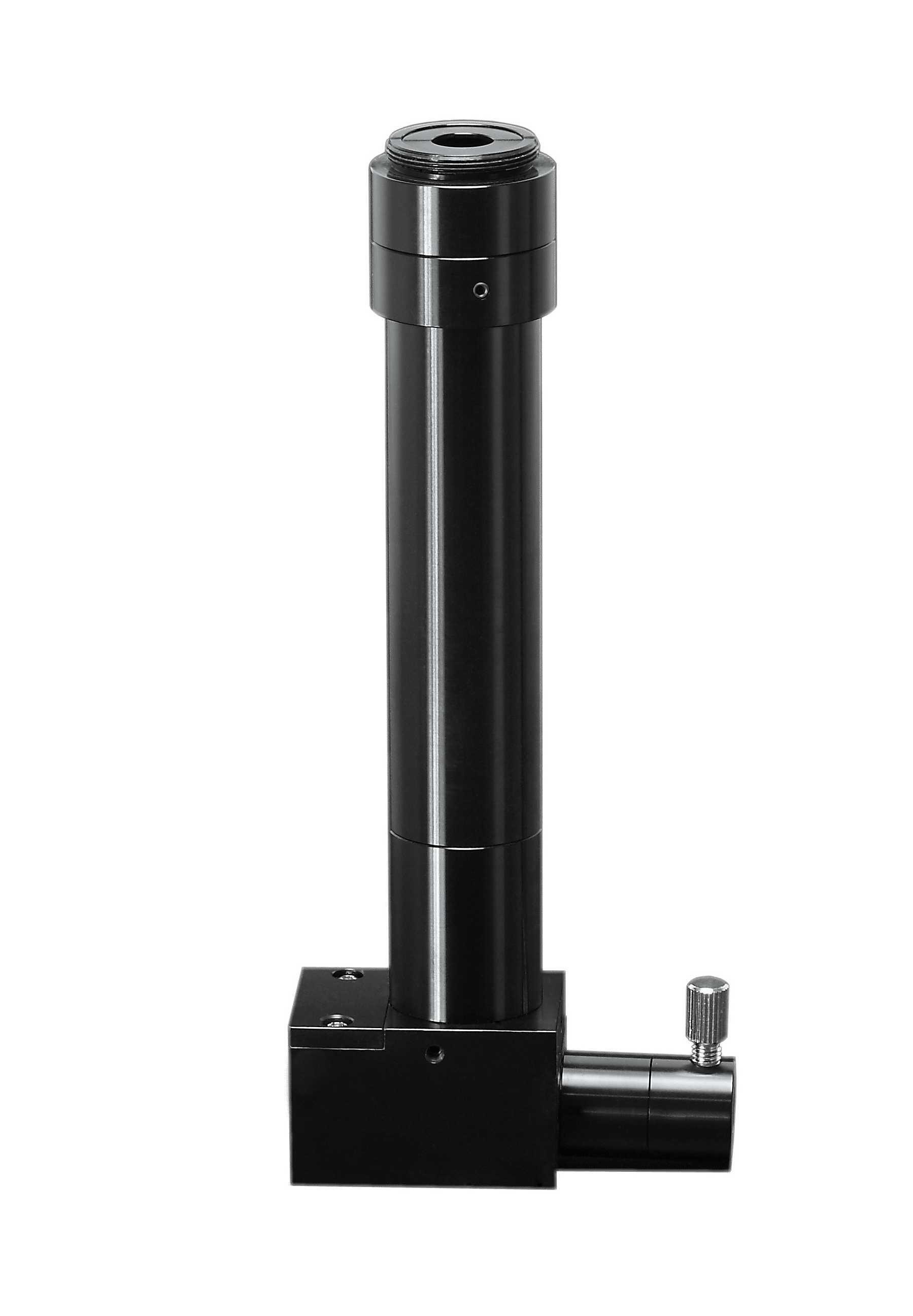

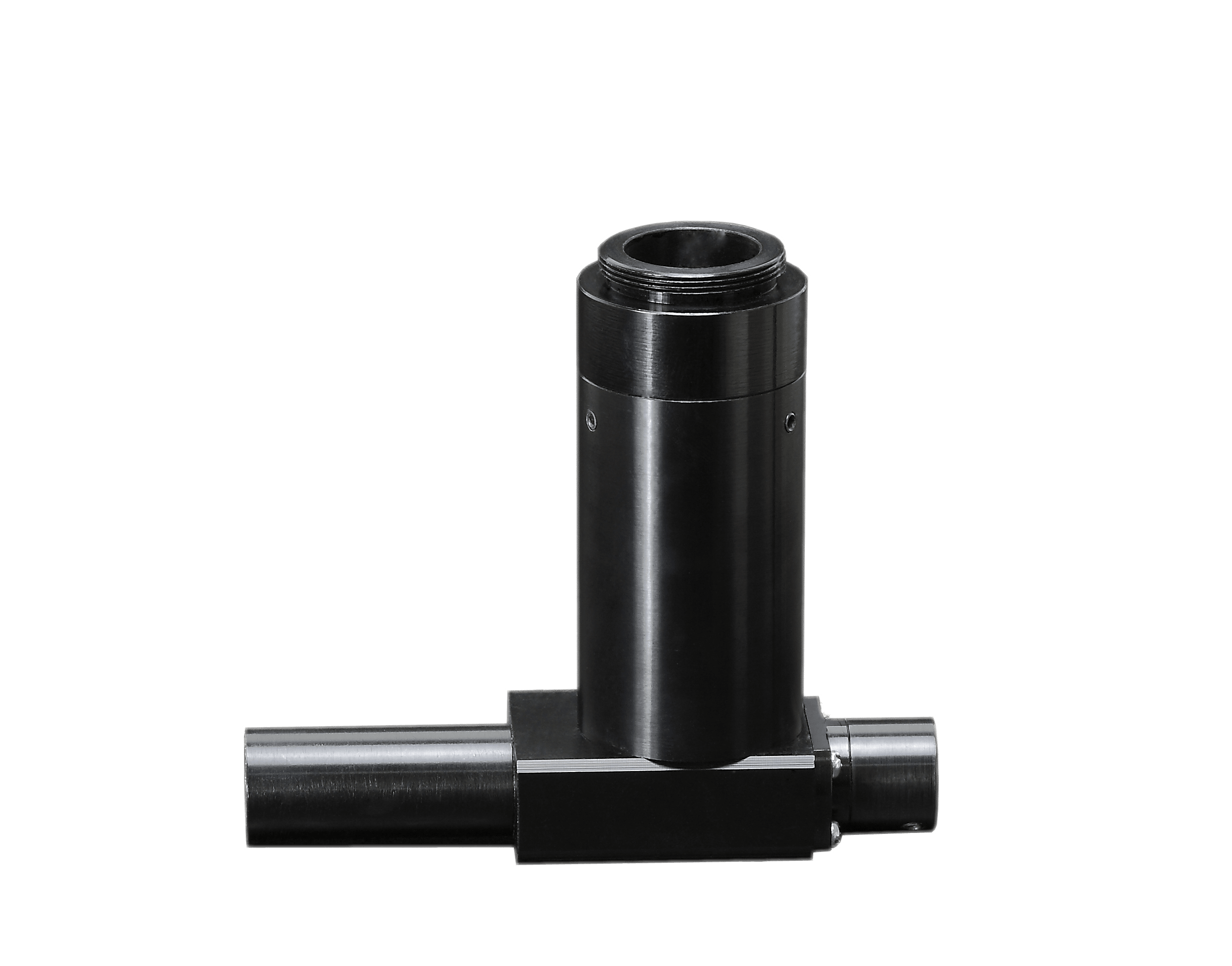

Tell us your requests on the working distance, optical magnification, coaxial-illumination or not, and mounting size for your equipment, we can design for you.
| 1. Working distance is 80mm： | |||||||||
| Model | Objective | WD (mm) | Total Mag. | FOV(mm) | NA | DOF(mm) | Resolution(μm) | Distortion | |
| 1/3″、9″ | 1/3″、17″ | ||||||||
| MTDM06-80 | 0.6X | 80 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.08% |
| MTDM06C-80 | 0.6X | 80 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.08% |
| MTDM08-80 | 0.8X | 80 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.10% |
| MTDM08C-80 | 0.8X | 80 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.10% |
| MTDM10-80 | 1.0X | 80 | 38.1X | 72.0X | 4.8X3.6 | 0.05 | 0.8 | 6.7 | 0.30% |
| MTDM10C-80 | 1.0X | 80 | 38.1X | 72.0X | 4.8X3.6 | 0.05 | 0.8 | 6.7 | 0.30% |
| MTDM15-80 | 1.5X | 80 | 57.2X | 108.0X | 3.2X2.4 | 0.05 | 0.8 | 6.7 | 0.30% |
| MTDM15C-80 | 1.5X | 80 | 57.2X | 108.0X | 3.2X2.4 | 0.05 | 0.8 | 6.7 | 0.30% |
| MTDM20-80 | 2.0X | 80 | 76.2X | 143.9X | 2.4X1.8 | 0.05 | 0.4 | 6.7 | 0.20% |
| MTDM20C-80 | 2.0X | 80 | 76.2X | 143.9X | 2.4X1.8 | 0.05 | 0.4 | 6.7 | 0.20% |
| MTDM25-80 | 2.5X | 80 | 95.3X | 179.9X | 1.9X1.4 | 0.05 | 0.32 | 6.7 | 0.20% |
| MTDM25C-80 | 2.5X | 80 | 95.3X | 179.9X | 1.9X1.4 | 0.05 | 0.32 | 6.7 | 0.20% |
| MTDM30-80 | 3.0X | 80 | 114.3X | 215.9X | 1.6X1.2 | 0.055 | 0.24 | 6.1 | 0.30% |
| MTDM30C-80 | 3.0X | 80 | 114.3X | 215.9X | 1.6X1.2 | 0.055 | 0.24 | 6.1 | 0.30% |
| MTDM40-80 | 4.0X | 80 | 152.4X | 287.9X | 1.2X0.9 | 0.06 | 0.17 | 5.6 | 0.40% |
| MTDM40C-80 | 4.0X | 80 | 152.4X | 287.9X | 1.2X0.9 | 0.06 | 0.17 | 5.6 | 0.40% |
| 2. Working distance is 100mm： | |||||||||
| Model | Objective | WD (mm) | Total Mag. | FOV(mm) | NA | DOF(mm) | Resolution(μm) | Distortion | |
| 1/3″、9″ | 1/3″、17″ | ||||||||
| MTDM06-100 | 0.6X | 100 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.03% |
| MTDM06C-100 | 0.6X | 100 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.03% |
| MTDM08-100 | 0.8X | 100 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.01% |
| MTDM08C-100 | 0.8X | 100 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.01% |
| MTDM10-100 | 1.0X | 100 | 38.1X | 72.0X | 4.8X3.6 | 0.045 | 0.89 | 7.5 | 0.18% |
| MTDM10C-100 | 1.0X | 100 | 38.1X | 72.0X | 4.8X3.6 | 0.045 | 0.89 | 7.5 | 0.18% |
| MTDM15-100 | 1.5X | 100 | 57.2X | 108.0X | 3.2X2.4 | 0.045 | 0.59 | 7.5 | 0.25% |
| MTDM15C-100 | 1.5X | 100 | 57.2X | 108.0X | 3.2X2.4 | 0.045 | 0.59 | 7.5 | 0.25% |
| MTDM20-100 | 2.0X | 100 | 76.2X | 143.9X | 2.4X1.8 | 0.045 | 0.44 | 7.5 | 0.24% |
| MTDM20C-100 | 2.0X | 100 | 76.2X | 143.9X | 2.4X1.8 | 0.045 | 0.44 | 7.5 | 0.24% |
| MTDM25-100 | 2.5X | 100 | 95.3X | 179.9X | 1.9X1.4 | 0.05 | 0.32 | 6.7 | 0.26% |
| MTDM25C-100 | 2.5X | 100 | 95.3X | 179.9X | 1.9X1.4 | 0.05 | 0.32 | 6.7 | 0.26% |
| MTDM30-100 | 3.0X | 100 | 114.3X | 215.9X | 1.6X1.2 | 0.055 | 0.24 | 6.4 | 0.20% |
| MTDM30C-100 | 3.0X | 100 | 114.3X | 215.9X | 1.6X1.2 | 0.055 | 0.24 | 6.4 | 0.20% |
| MTDM40-100 | 4.0X | 100 | 152.4X | 287.9X | 1.2X0.9 | 0.06 | 0.17 | 5.6 | 0.25% |
| MTDM40C-100 | 4.0X | 100 | 152.4X | 287.9X | 1.2X0.9 | 0.06 | 0.17 | 5.6 | 0.25% |
| 3. Working distance is 150mm： | |||||||||
| Model | Objective | WD (mm) | Total Mag. | FOV(mm) | NA | DOF(mm) | Resolution(μm) | Distortion | |
| 1/3″、9″ | 1/3″、17″ | ||||||||
| MTDM06-150 | 0.6X | 150 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.01% |
| MTDM06C-150 | 0.6X | 150 | 22.9X | 43.2X | 8X6 | 0.04 | 1.67 | 8.4 | 0.01% |
| MTDM08-150 | 0.8X | 150 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.12% |
| MTDM08C-150 | 0.8X | 150 | 30.5X | 57.6X | 6X4.5 | 0.04 | 1.25 | 8.4 | 0.12% |
| MTDM10-150 | 1.0X | 150 | 38.1X | 72.0X | 4.8X3.6 | 0.04 | 1 | 8.4 | 0.28% |
| MTDM10C-150 | 1.0X | 150 | 38.1X | 72.0X | 4.8X3.6 | 0.04 | 1 | 8.4 | 0.28% |
| MTDM12.5-150 | 1.25X | 150 | 47.6X | 90.0X | 3.8X2.9 | 0.04 | 0.8 | 8.4 | 0.40% |
| MTDM12.5C-150 | 1.25X | 150 | 47.6X | 90.0X | 3.8X2.9 | 0.04 | 0.8 | 8.4 | 0.40% |
| MTDM15-150 | 1.5X | 150 | 57.2X | 108.0X | 3.2X2.4 | 0.04 | 0.67 | 8.4 | 0.50% |
| MTDM15C-150 | 1.5X | 150 | 57.2X | 108.0X | 3.2X2.4 | 0.04 | 0.67 | 8.4 | 0.50% |
| MTDM20-150 | 2.0X | 150 | 76.2X | 143.9X | 2.4X1.8 | 0.042 | 0.48 | 8 | 0.35% |
| MTDM20C-150 | 2.0X | 150 | 76.2X | 143.9X | 2.4X1.8 | 0.042 | 0.48 | 8 | 0.35% |
| Note: | |||||||||
| 1. The depth of field is the value of parsing images if you use 1/2″ CCD camera and monitor of level 320 line.(imaging surface concessional confusion circumference: 40μm) | |||||||||
| 2. Resolution is the theory resolution of wavelength in 550nm. | |||||||||
| 3. The largest compatible CCD: 1/2″ | |||||||||
| 4. Install dimension: C-mount, the whorl is 1 inch 32 button. | |||||||||
| 5. In the line of total magnification, 1/3″ is expressed CCD camera’s specifications, 9″、17″ is expressed monitor’s screen dimensions. 1/3″、9″ is expressed the total magnification of MTD series fixed magnification monocular video microscope objective in 1/3″ CCD camera and 9″ monitor. | |||||||||
| Auxiliary illuminators | MLC1000，MLR25 |
|
Objectives (MZDH series) | 0.3X, 0.5X,0.75X, |
 | focus holders | SF1, SF5(coarse-fine) |
