| Weight | 1800 g |
|---|---|
| Dimensions | 370 × 330 × 385 mm |
| Optical Mag. | 18X~65X |
| Zoom Ratio | 3.6:1 |
| standard eyepieces | SWH10X/23 |
| Eyetube Inclination degree | 45 degree |
| Working distance | 92mm |
| Interpupillary Distance | 52mm~76mm |
| Diopter Range | +-6 degree |
| Stand | SD12 |
| Illuminator | LED coaxial illumination |
| CCD adaptor | C1.0-S (used for trinocular) |
| color | Grey, black |

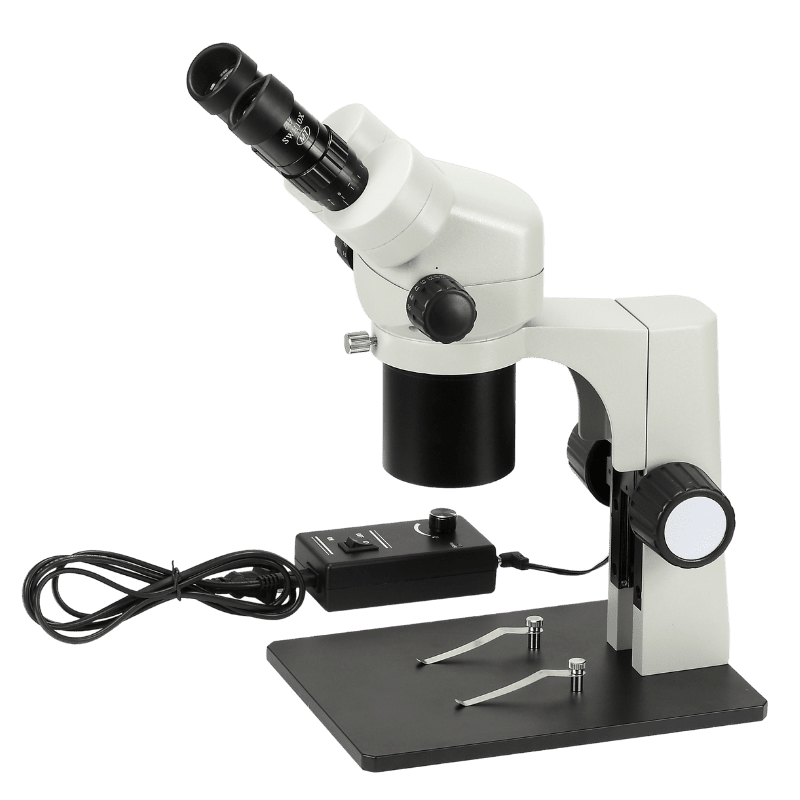

MZS1865C+SD12:

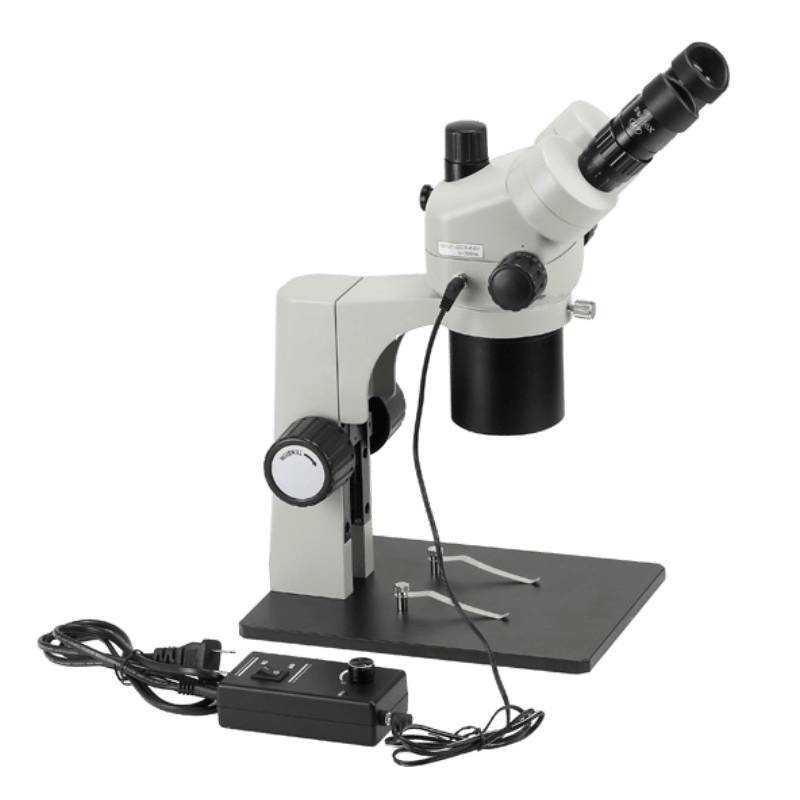

MZS1865TC+SD12:
| Eyepiece | Item | Main body |
| 10X/Φ23 | Total Mag. | 18X~65X |
| FOV(mm) | Φ12.78~Φ3.5 | |
| 15X/Φ17 | Total Mag. | 27X~97.5X |
| FOV(mm) | Φ9.4~Φ2.6 | |
| 20X/Φ14 | Total Mag. | 36X~130X |
| FOV(mm) | Φ7.78~Φ2.2 | |
| 30X/Φ9 | Total Mag. | 54X~195X |
| FOV(mm) | Φ5~Φ1.4 | |
| WD(mm) | 92 | |
 | Stands: SD1~SD18 |  | Digital camera adapter: DT01 | |

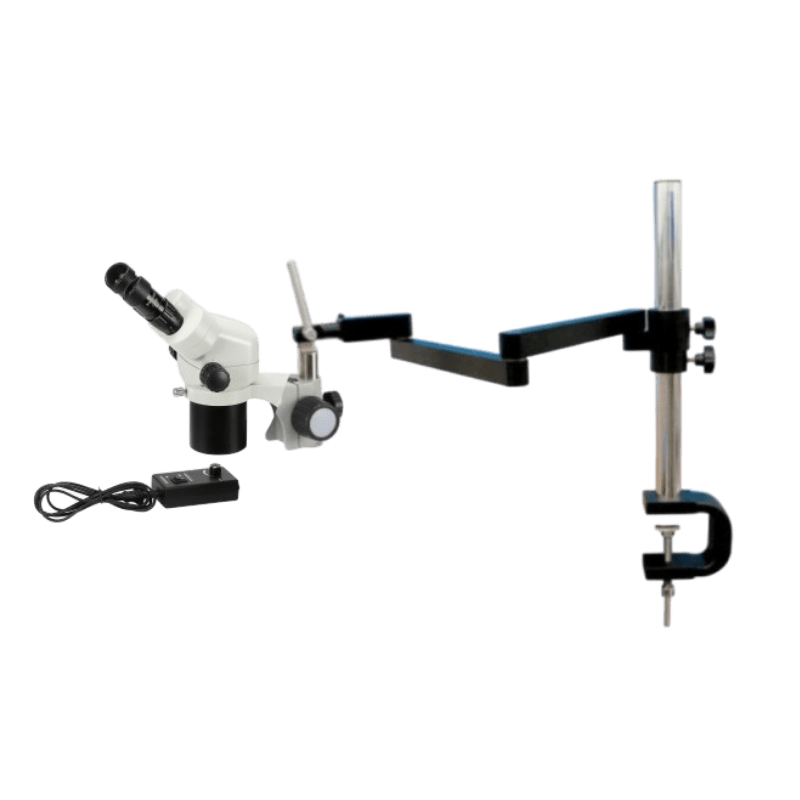

 | Universal stands: U1, U2, U3, U4, U1c, U2c, U3c |  | Digital camera adapter: PT02 | |
 | Eyepieces: SWH10X, SWF15X, SWF20X,SWF30X |  | 1X CCD adapter with micrometer: CDM1.0; Note: It should be used with CCD adapter together. | |
 | Eyepieces with reticle: SWH10X-CM0.1XY, SWF15X-CM0.05XY, SWF20X-CM0.05XY |  | Auxiliary illuminators: MLR60, ML01 | |
 | Auxiliary objectives: W0.37, W0.5, W0.7, W1.5, W2.0 |  | CMOS Cameras: available | |

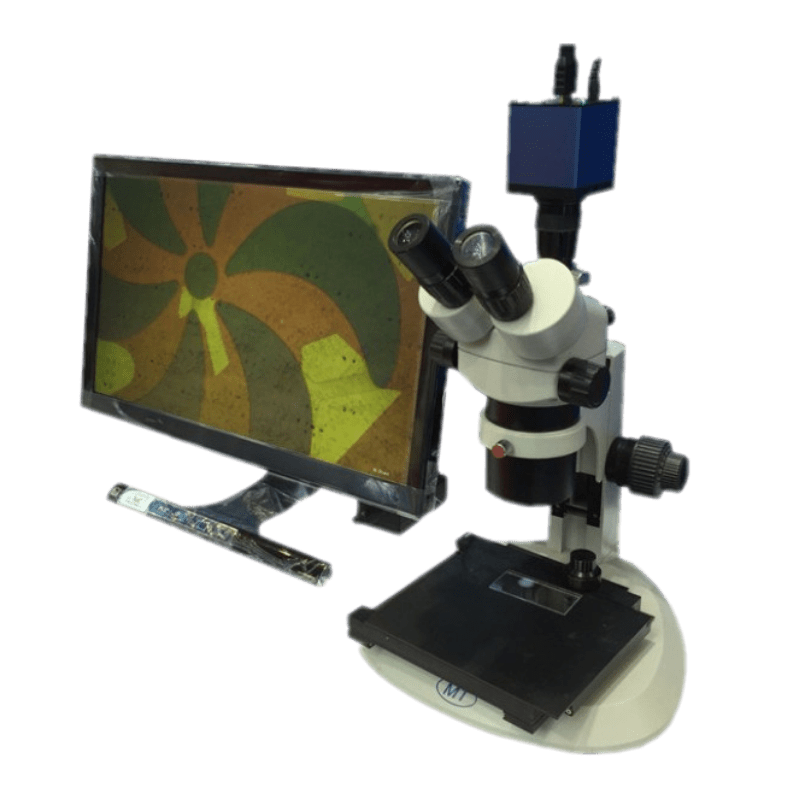

 | CCD adapters: C0.3-S、C0.5-S、C1.0-S |  | Mechanical stages: S7665,S10086; Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs especially to be increased the screw holes. |
